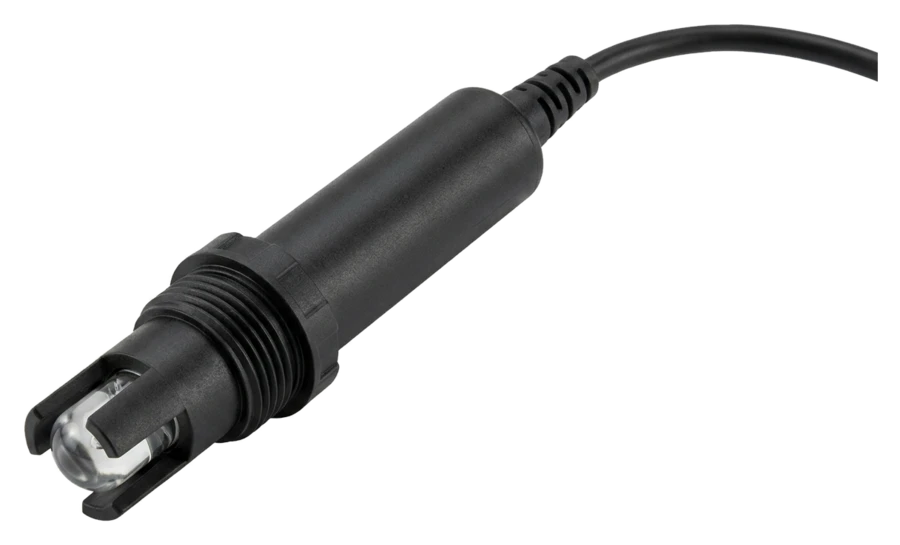

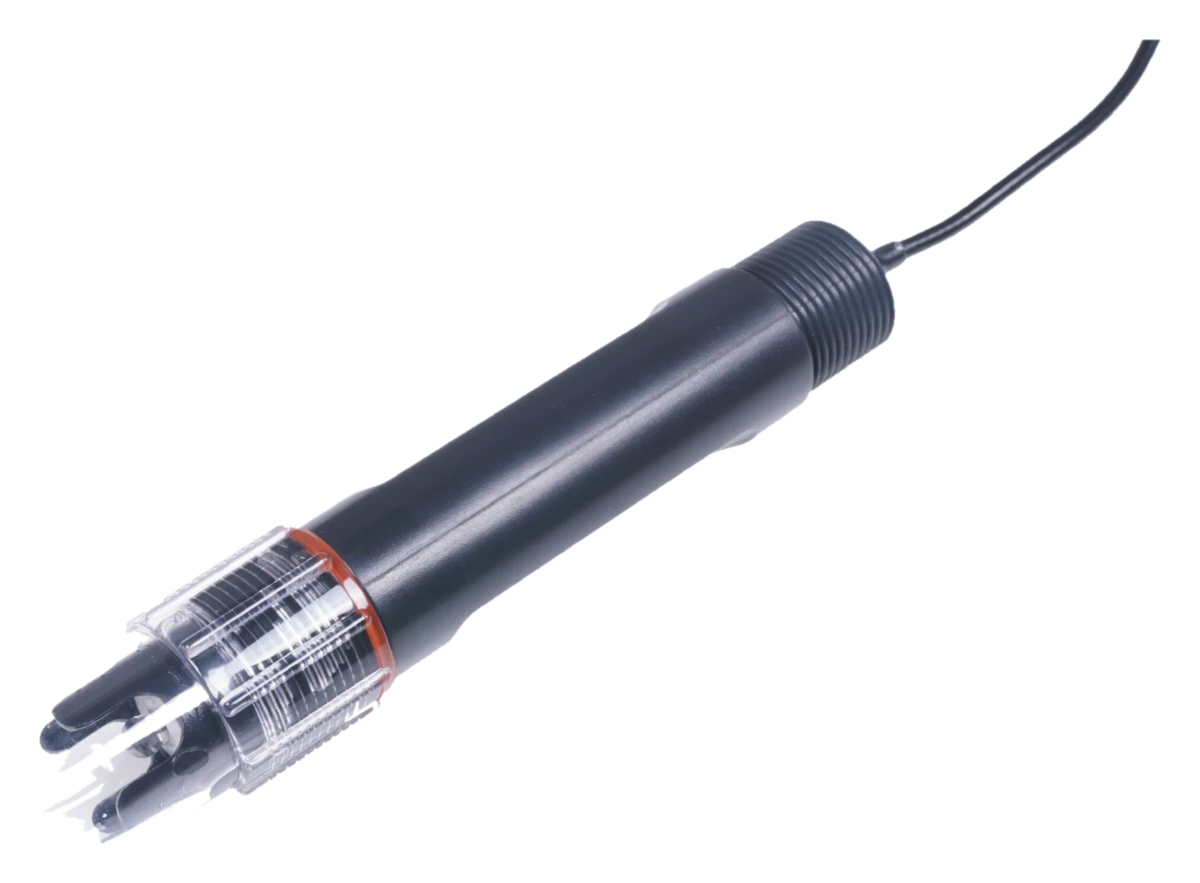

Industrial pH Sensor
Price
$200.00USD
Tested and provisioned · ships in 2-4 weeks
Modbus RTU
Overview
Wired industrial pH for reservoirs, batch tanks, and dosing loops: 0–14 pH at ±0.1 with 0.01 resolution and automatic temperature compensation. Speaks Modbus RTU over RS-485 (plus a 0–2 V analog output), so it lands directly on the Growbud Controller's field bus and drives closed-loop pH dosing. IP68 probe with a 5 m cable, 3.6–30 V DC.
Total:$200.00
Ships in 2-4 weeks, tested and provisioned for your Growbud network before it leaves. Tracking the day it ships.
Product Details
Wired industrial pH for reservoirs, batch tanks, and dosing loops: 0–14 pH at ±0.1 with 0.01 resolution and automatic temperature compensation. Speaks Modbus RTU over RS-485 (plus a 0–2 V analog output), so it lands directly on the Growbud Controller's field bus and drives closed-loop pH dosing. IP68 probe with a 5 m cable, 3.6–30 V DC.
Technical Specifications
pH Range
0–14 pH
±0.1 pH accuracy, 0.01 pH resolution
Compensation
Automatic
Built-in temperature compensation holds accuracy as the reservoir drifts
Interface
Modbus RTU
RS-485 onto the Controller's field bus, plus a 0–2 V analog output
Power
3.6–30 V DC
About 6 mA at 24 V
Environment
IP68
-40°C to 85°C, 5 m cable included
Use
Closed-loop dosing
Reservoirs, batch tanks, and pH dosing loops on the Controller
