Temp + RH + Barometric Sensor
Price
$80.00USD
Tested and provisioned · ships in 2-4 weeks
Modbus RTU
Overview

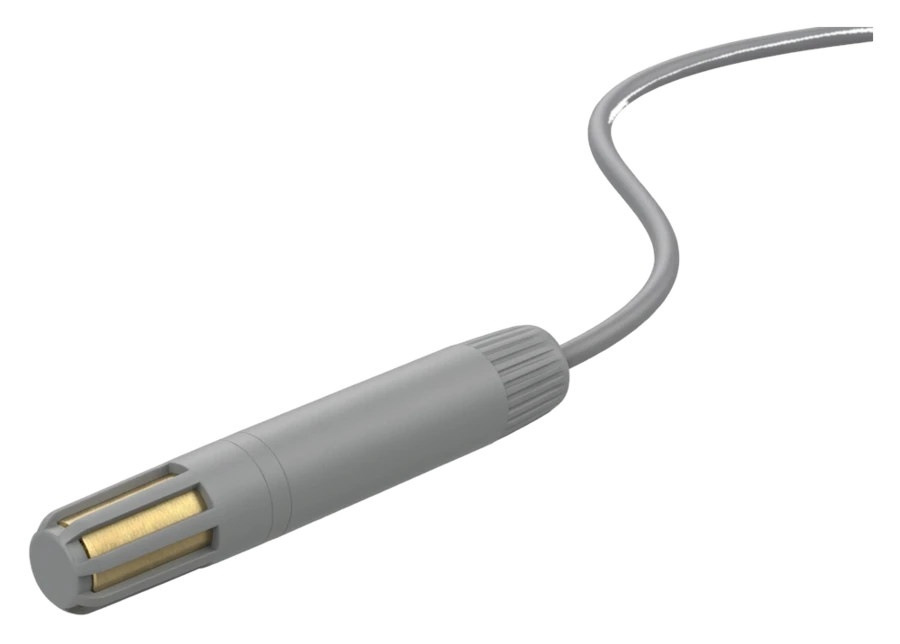

A wired RS-485 air sensor for the Controller's Modbus bus: -40 to 125°C, 0–100% RH, and 300–1100 hPa barometric pressure at ±0.15 hPa, built on Sensirion temperature/humidity and Bosch barometric MEMS parts. IP56 louvered enclosure; add the solar radiation shield for outdoor mounting.
Total:$80.00

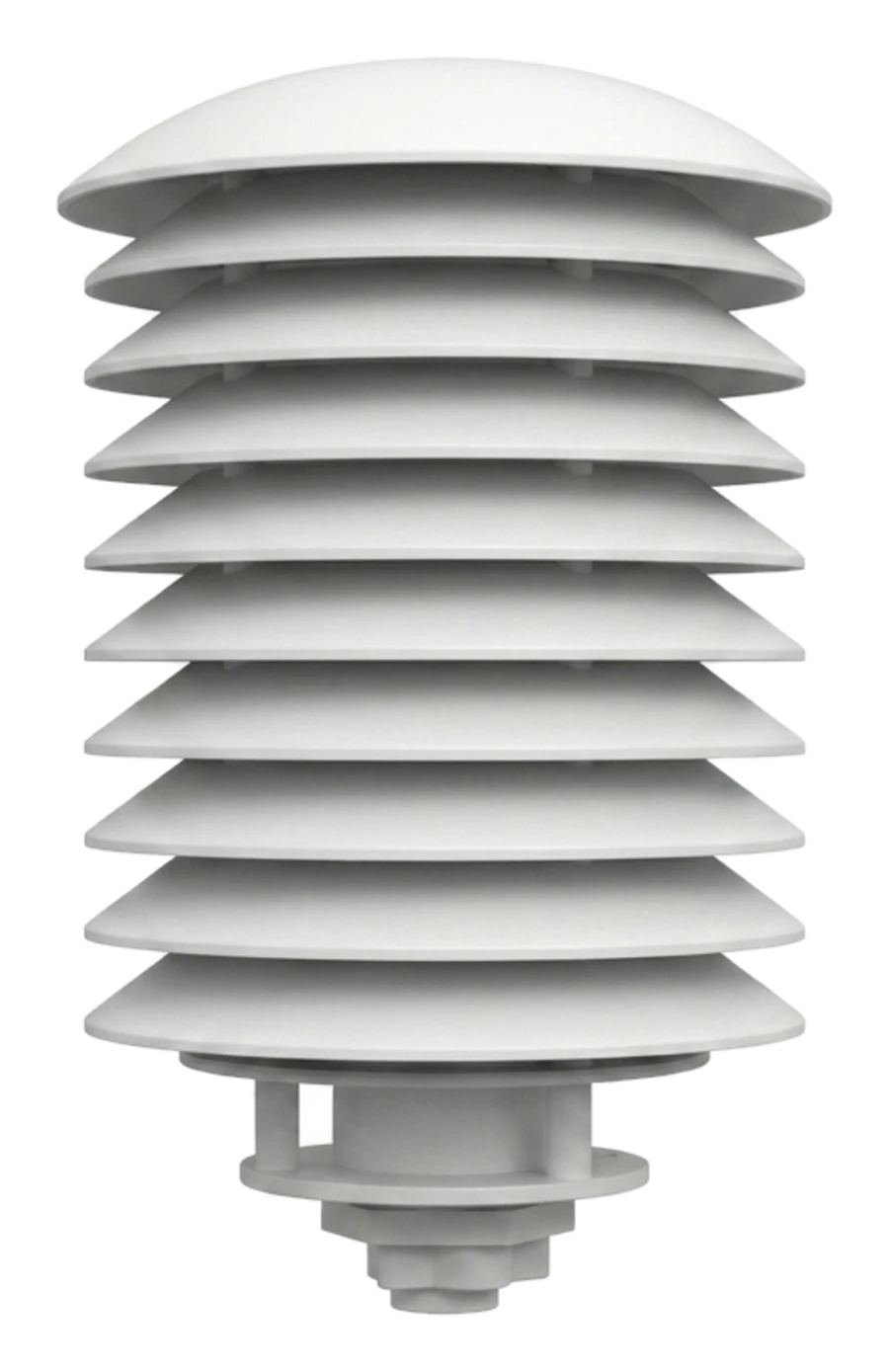

Radiation shieldlouver box for outdoor and direct-sun mounting
Ships in 2-4 weeks, tested and provisioned for your Growbud network before it leaves. Tracking the day it ships.
Product Details
A wired RS-485 air sensor for the Controller's Modbus bus: -40 to 125°C, 0–100% RH, and 300–1100 hPa barometric pressure at ±0.15 hPa, built on Sensirion temperature/humidity and Bosch barometric MEMS parts. IP56 louvered enclosure; add the solar radiation shield for outdoor mounting.
Technical Specifications
Temperature
-40°C to 125°C
Sensirion temperature/humidity element
Humidity
0–100% RH
Full-range relative humidity
Barometric Pressure
300–1100 hPa
±0.15 hPa on a Bosch barometric MEMS chip
Interface
Modbus RTU
Wired RS-485 onto the Controller's field bus
Environment
IP56
Louvered enclosure; add a radiation shield for outdoor mounting
